Pick a cooling line.
Then model TCO.

MDCX solutions are factory-built containers in two lines: Liquid Cooling and Immersion Cooling. Each block has a readable name and a code name — start with TCO before you lock a configuration.

Start here
TCO Analysis

Model CapEx, power, utilization, and IRR for Liquid Cooling and Immersion Cooling — then open Designer with the same solution code.

Open TCO Analysis →
Product line

Liquid Cooling

Cold-plate containers for high-density training racks. Factory-built, one warm-water or dual-loop interface.

TCO for Liquid Cooling →

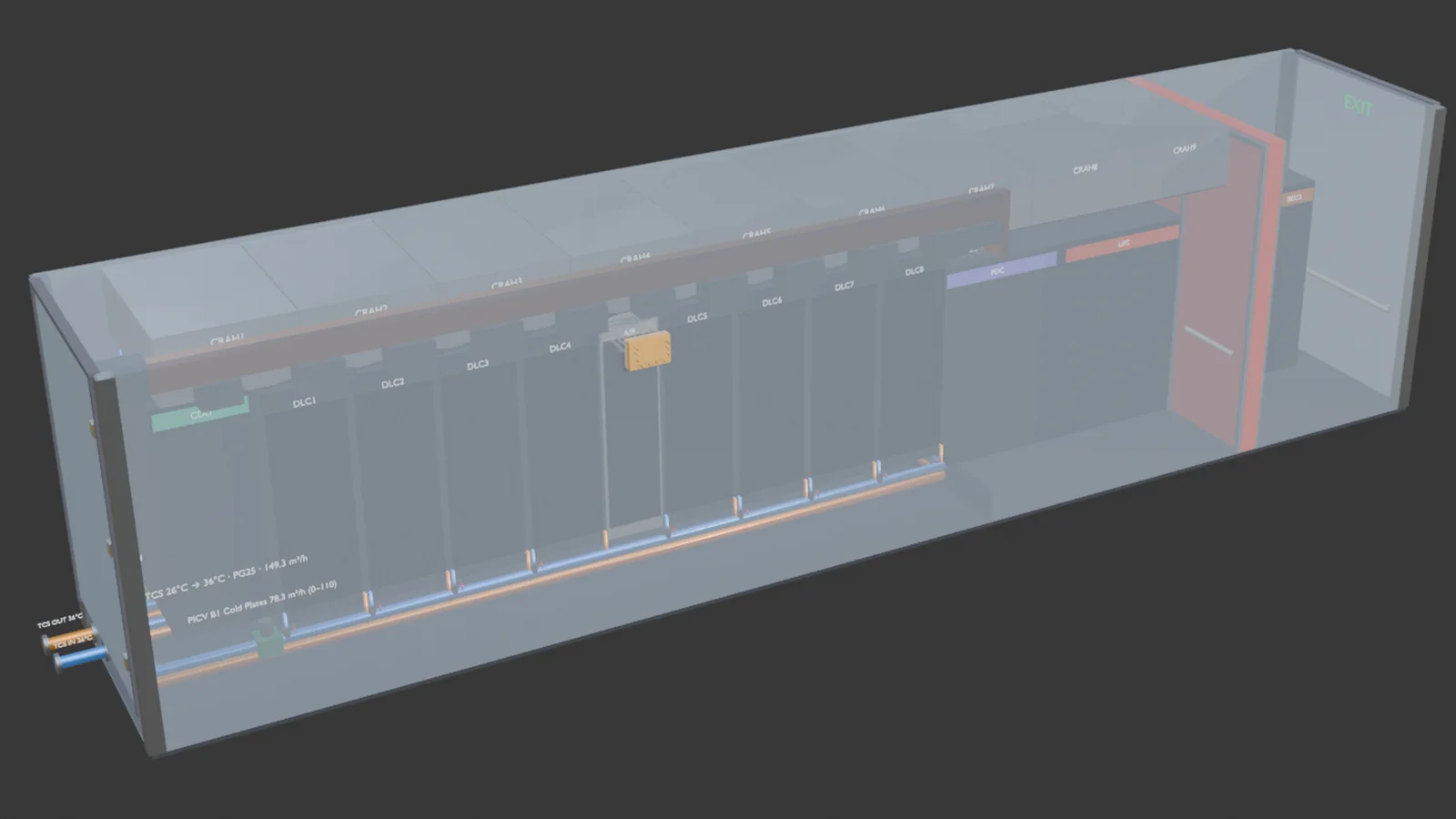

1240 Liquid Cooling Container with UPS (L1240C45)
● Available
1240 Liquid Cooling Container with UPS (L1240C45) L1240C45SUR150
45 ft · up to 150 kW/rack
up to 576 GB300
IT Capacity1,240 kW
DensityUp to 150 kW/rack
UPSIncluded
Use CaseSXM training · long-term AI
TCO → View →

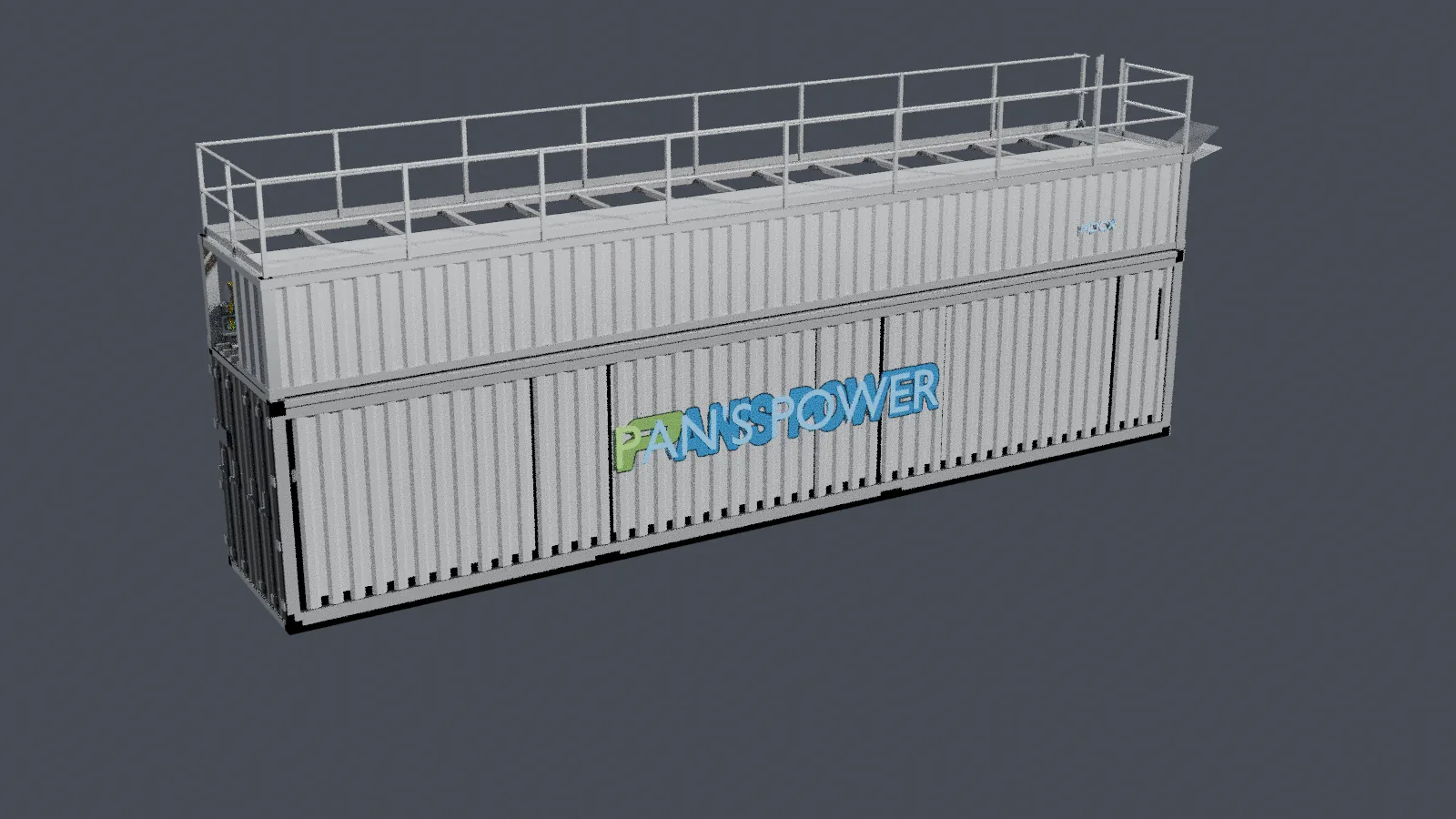

1800 Liquid Cooling Container (L1800C45)
1800 Liquid Cooling Container (L1800C45) L1800C45DR220
45 ft · dual loop · up to 220 kW/rack
up to 576 Vera Rubin
IT Capacity1,800 kW
DensityUp to 220 kW/rack
UPSNot included
TCO → View →

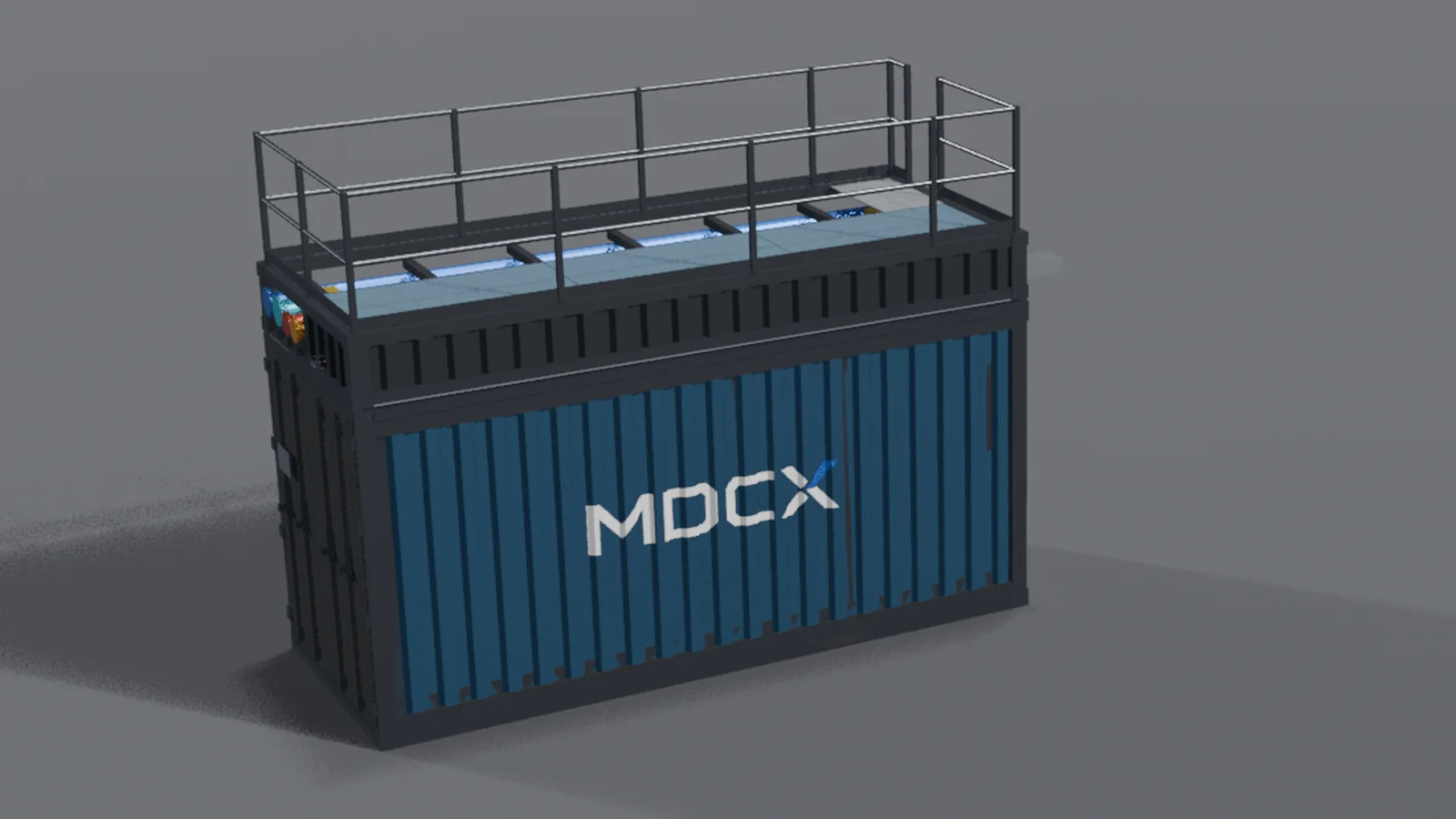

450 Liquid Cooling Container (L450C20)
450 Liquid Cooling Container (L450C20) L450C20DR150
20 ft · dual loop · up to 150 kW/rack
up to 216 GB300
IT Capacity450 kW
DensityUp to 150 kW/rack
UPSNot included
TCO → View →
Product line

Immersion Cooling

Single-phase immersion containers for inference density and a lower cost per GPU on the pad.

TCO for Immersion Cooling →

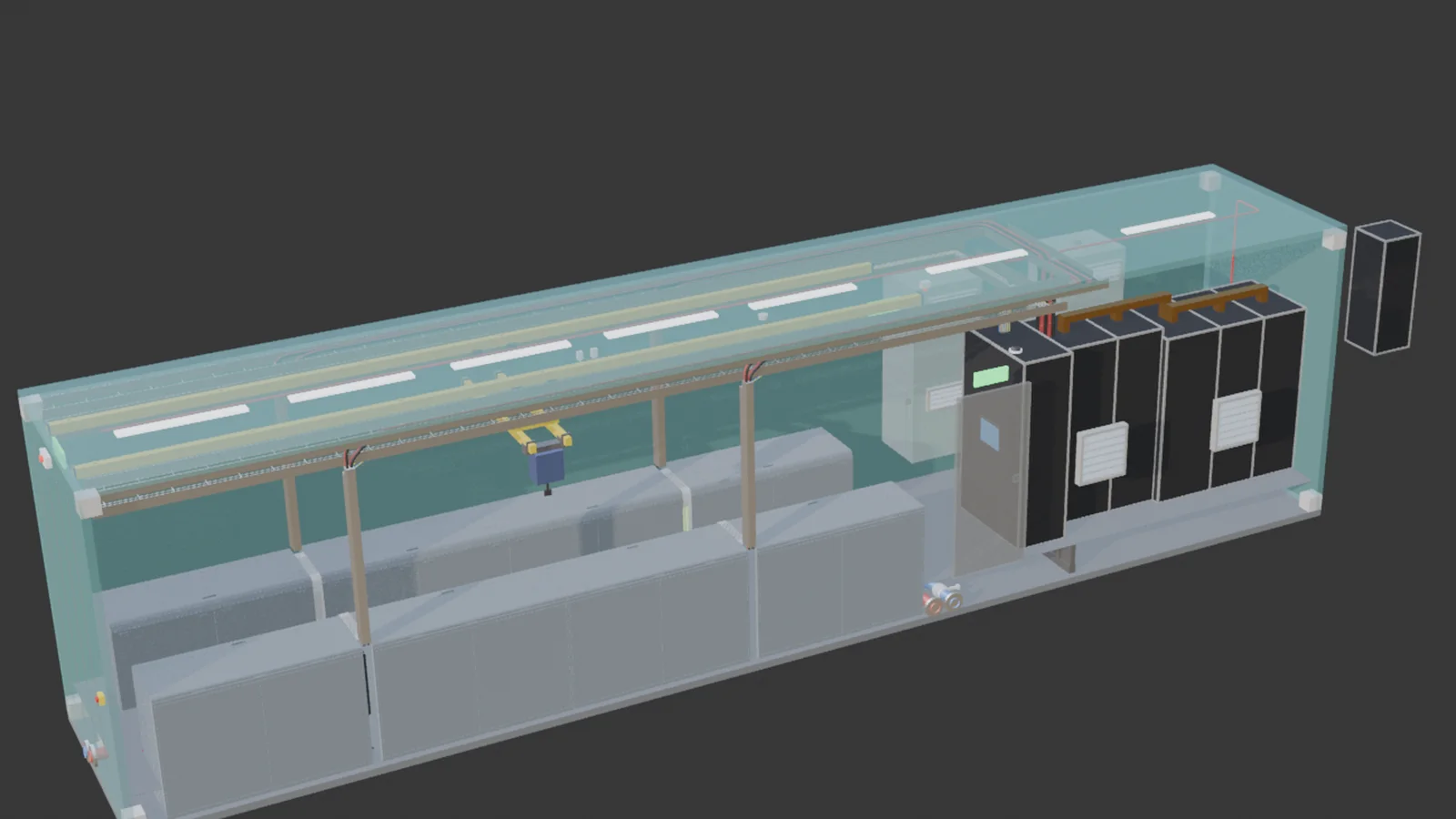

400 Immersion Cooling Container with UPS (I400C45)
● Available
400 Immersion Cooling Container with UPS (I400C45) I400C45SUT50
45 ft · up to 50 kW/tank
up to 512 Pro 6000 Server Edition
IT Capacity400 kW
DensityUp to 50 kW/tank
UPSIncluded
Use CaseInference · fast monetization
TCO → View →

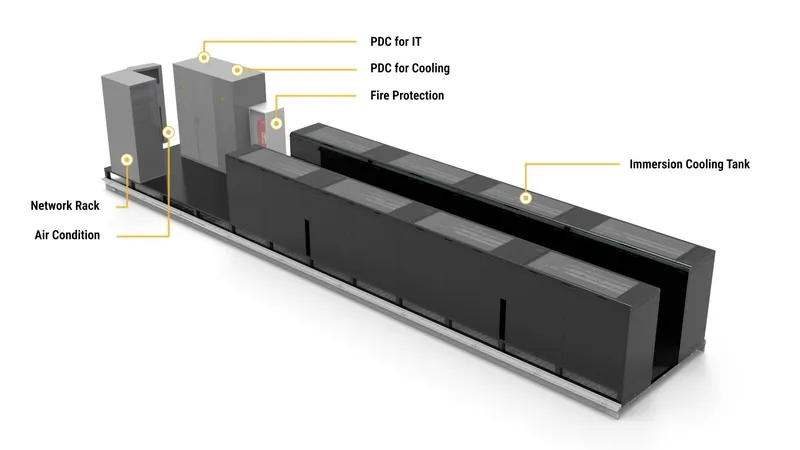

400 Immersion Cooling Container (I400C40)
● Available
400 Immersion Cooling Container (I400C40) I400C40ST50
40 ft · up to 50 kW/tank · no UPS
up to 512 Pro 6000 Server Edition
IT Capacity400 kW
DensityUp to 50 kW/tank
UPSNot included
Use CaseInference · no UPS package
TCO → View →

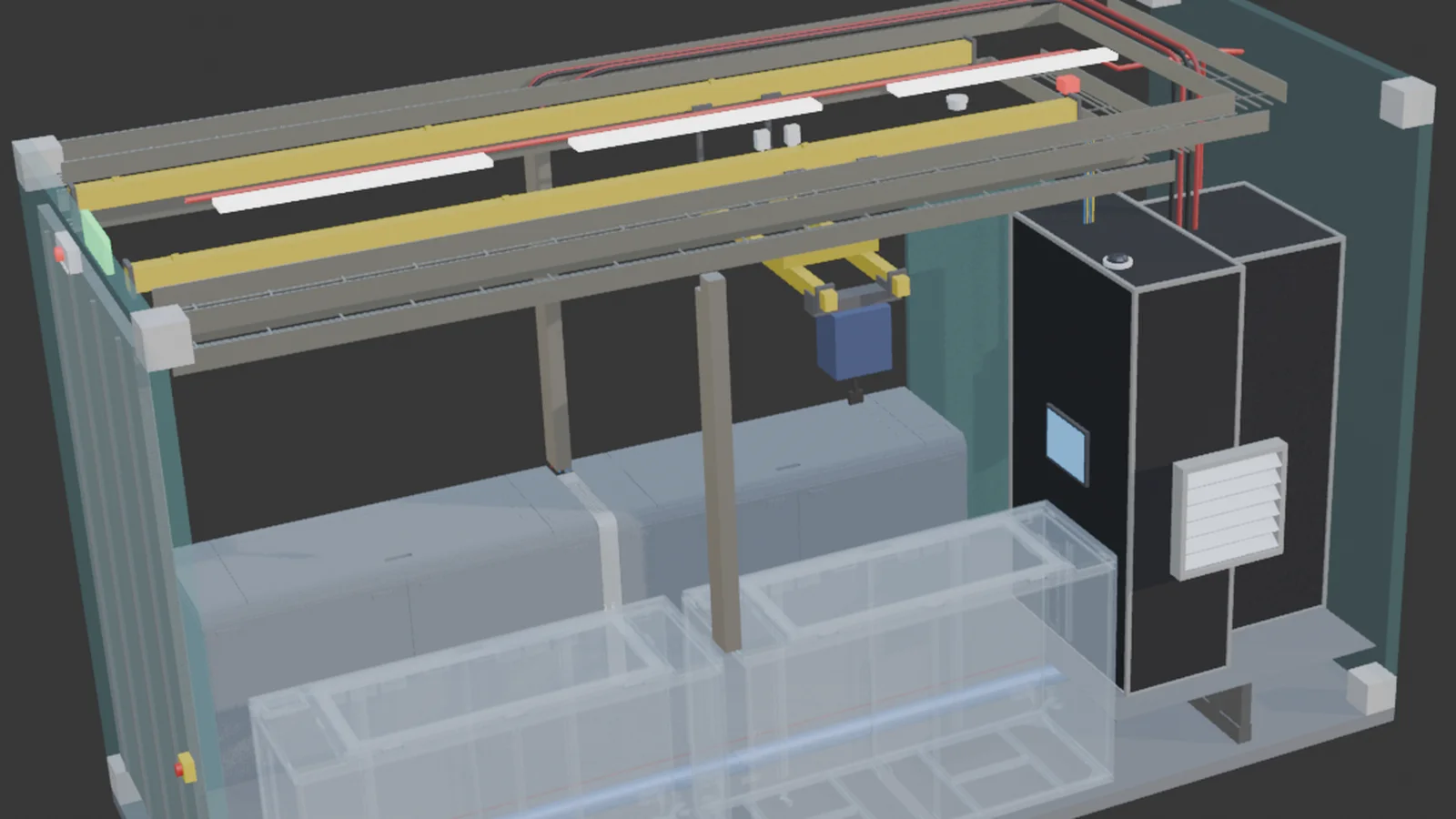

200 Immersion Cooling Container (I200C20)
200 Immersion Cooling Container (I200C20) I200C20ST50
20 ft · 4× A32 · up to 50 kW/tank
up to 256 Pro 6000 Server Edition
IT Capacity200 kW
Tanks4× A32 · up to 50 kW/tank
UPSNot included
TCO → View →

Liquid Cooling or Immersion Cooling

Pick the line by platform, then the container by pad length and UPS boundary.

Liquid Cooling Immersion Cooling
Cooling method Cold plate on the GPU Single-phase bath of the whole board
Platforms SXM / NVLink (GB300 NVL72 · B300 HGX) PCIe fleets
Density Up to 220 kW/rack Up to 50 kW/tank
PUE ≈ 1.15–1.20 typical mid-climate only — not free-cooling or summer-peak; confirm in TCO / Designer ≈ 1.05 · peak dry-bulb ≤ 24 °C / free-cooling — not hot-zone
IT capacity 450 – 1,800 kW 200 – 400 kW
Typical load Training Inference
Platform & approach
Why MDCX
● Available
Why MDCX
Approach & Fast Delivery
ConceptComputing Unit + BESS + Hybrid Chiller
Timeline90 d EXW · expansion 90 d EXW
Read Why MDCX →
Roadmap
DCM compute marketplace
Compute Market
DCM · Monetize spare GPUs
ModesSpot · Plans · Reserved
StatusRoadmap · early access
Explore DCM →
Software · included with every solution
CIOS — the operating system of the AI Factory ● Open source

Standardized telemetry, alarms-to-tickets, operations workflows, and usage metering — from a single container to a full cluster. Open-core Apache-2.0 at github.com/MDCX-ORG/CIOS.

Explore CIOS → GitHub ↗
